Widin WSPM4200-20 Dia 20mm SH 0.7874 LOC 0.7874 OAL3.9370 End Mill Carbide AlTiN Single End High Feed0.0787 2.00mm WINNER

Part Number: WIDWSPM4200-20
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1224765
Vendor: Sussex Tool and Supply
$307.24

Description

WIDIN End Mill Carbide AlTiN High Feed 0.0787 2.00MM Flutes 4 Single End WINNER Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape High Feed
Cutter Style Carbide Feed Mill
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting

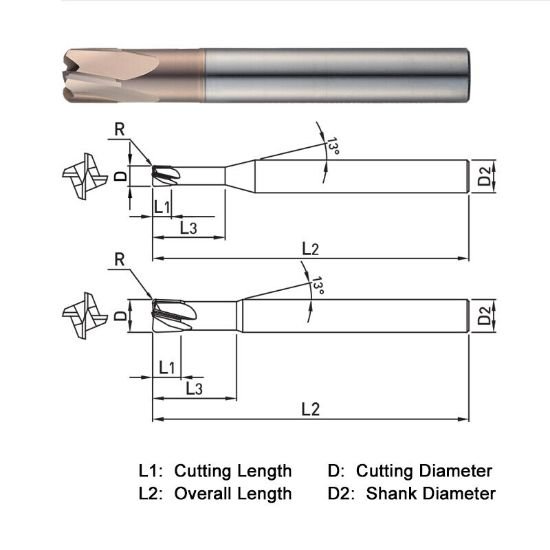

Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 4
Tool Dia 0.7874 20.00MM
Length Of Cut 0.7874 20.00MM
Neck Length 1.5748 40.00MM
Geometry & Angles
Corner Radius 0.0787 2.00MM
Helix Angle 10
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
