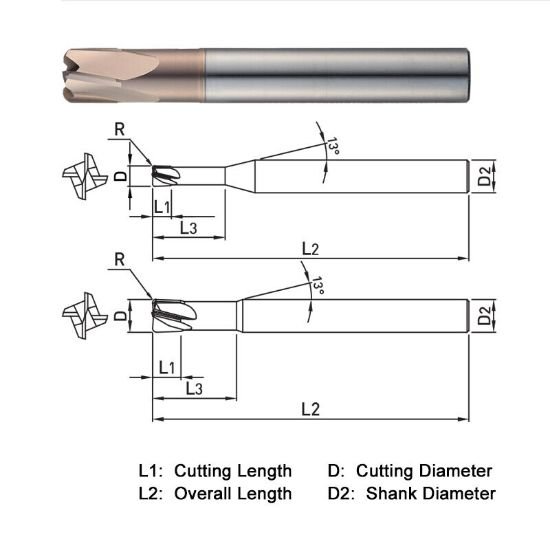

Picture of Widin WSPM4200-10L Dia 20mm SH 0.7874 LOC 0.7874 OAL5.9055 End Mill Carbide AlTiN Single End High Feed0.0394 1.00mm WINNER

Widin WSPM4200-10L Dia 20mm SH 0.7874 LOC 0.7874 OAL5.9055 End Mill Carbide AlTiN Single End High Feed0.0394 1.00mm WINNER

Part Number: WIDWSPM4200-10L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1224764
Vendor: Sussex Tool and Supply
$556.34
WIDIN End Mill Carbide AlTiN High Feed 0.0394 1.00MM Flutes 4 Single End WINNER Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.7874 20.00MM
Overall Length 5.9055 150.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 4
Tool Dia 0.7874 20.00MM
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.7874 20.00MM
End Of Tool Shape High Feed
Cutter Style Carbide Feed Mill
Single/Double End Single End
Corner Radius 0.0394 1.00MM
Inch/Metric Metric
Helix Angle 10
Center Cutting Center Cutting
Neck Length 1.5748 40.00MM
