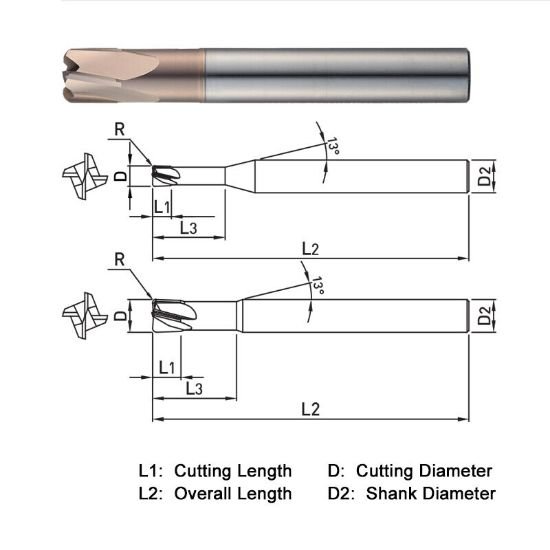

Picture of Widin WSPM4100-02 Dia 10mm SH 0.3937 LOC 0.3937 OAL2.9528 End Mill Carbide AlTiN Single End High Feed0.0079 0.20mm WINNER

Widin WSPM4100-02 Dia 10mm SH 0.3937 LOC 0.3937 OAL2.9528 End Mill Carbide AlTiN Single End High Feed0.0079 0.20mm WINNER

Part Number: WIDWSPM4100-02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1224731
Vendor: Sussex Tool and Supply
$126.29
WIDIN End Mill Carbide AlTiN High Feed 0.0079 0.20MM Flutes 4 Single End WINNER Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.3937 10.00MM
Overall Length 2.9528 75.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 4
Tool Dia 0.3937 10.00MM
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.3937 10.00MM
End Of Tool Shape High Feed
Cutter Style Carbide Feed Mill
Single/Double End Single End
Corner Radius 0.0079 0.20MM
Inch/Metric Metric
Helix Angle 10
Center Cutting Center Cutting
Neck Length 0.9843 25.00MM
