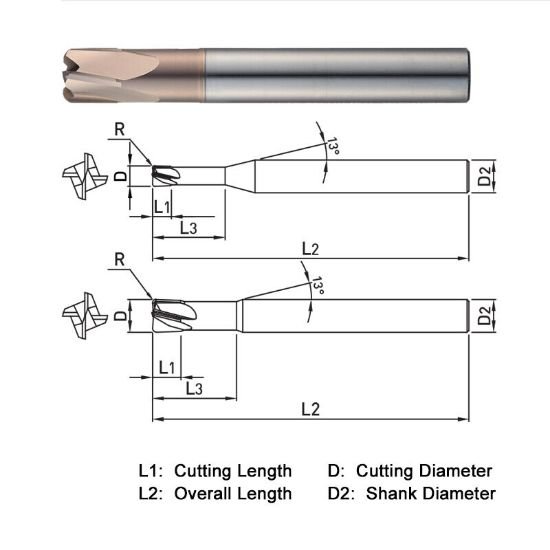

Picture of Widin WSPM4020-03 Dia 2mm SH 0.2362 LOC 0.0787 OAL1.9685 End Mill Carbide AlTiN Single End High Feed0.0118 0.30mm WINNER

Widin WSPM4020-03 Dia 2mm SH 0.2362 LOC 0.0787 OAL1.9685 End Mill Carbide AlTiN Single End High Feed0.0118 0.30mm WINNER

Part Number: WIDWSPM4020-03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1224702
Vendor: Sussex Tool and Supply
$64.44
Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 0.2362 6.00MM
Cutter Type Solid End Mill
Length Type Standard / With Neck
Performance Rating High Performance
Center Cutting Center Cutting
Overall Length 1.9685 50.00MM
Machine Side (Toolpost) CYLINDRICAL0.2362
Cutting Edge Definition or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance., as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), Cemented carbides are a class of hard materials used extensively for cutting tools
Length Of Cut 0.0787 2.00MM
End Of Tool Shape High Feed
Cutter Style Carbide Feed Mill
Inch Or Metric Metric
Machine Side (Toolpost) Connection Type Cylindrical
Flutes Or Inserts 4
Shipping State ILLINOIS
Family Group Winner
Single Or Double End Single End
Cutting Edge Material Carbide
Tool Material Carbide
Mach Side Connection Size 0.2362 6.00MM
Coating AlTiN
Tool Diameter 0.0787 2.00MM
Coolant Thru Non Coolant
Corner Radius 0.0118 0.30MM
Neck Length 0.2362 6.00MM
Helix Angle 10°
Made In USA No
