Picture of Widin WSPM4010-03 Dia 1mm SH 0.2362 LOC 0.0394 OAL1.9685 End Mill Carbide AlTiN Single End High Feed0.0118 0.30mm WINNER

Widin WSPM4010-03 Dia 1mm SH 0.2362 LOC 0.0394 OAL1.9685 End Mill Carbide AlTiN Single End High Feed0.0118 0.30mm WINNER

Part Number: WIDWSPM4010-03
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1224697
Vendor: Sussex Tool and Supply
$40.15

Description

WIDIN End Mill Carbide AlTiN High Feed 0.0118 0.30MM Flutes 4 Single End WINNER Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape High Feed
Cutter Style Carbide Feed Mill
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting

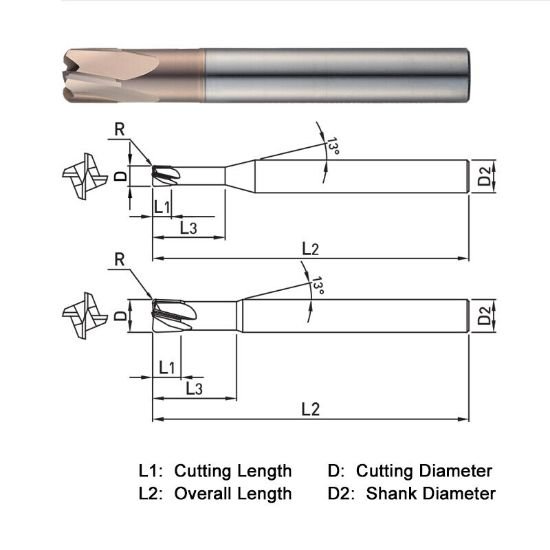

Dimensions & Sizing
Overall Length 1.9685 50.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 4
Tool Dia 0.0393 1.00MM
Length Of Cut 0.0394 1.00MM
Neck Length 0.0984 2.50MM
Geometry & Angles
Corner Radius 0.0118 0.30MM
Helix Angle 10
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
