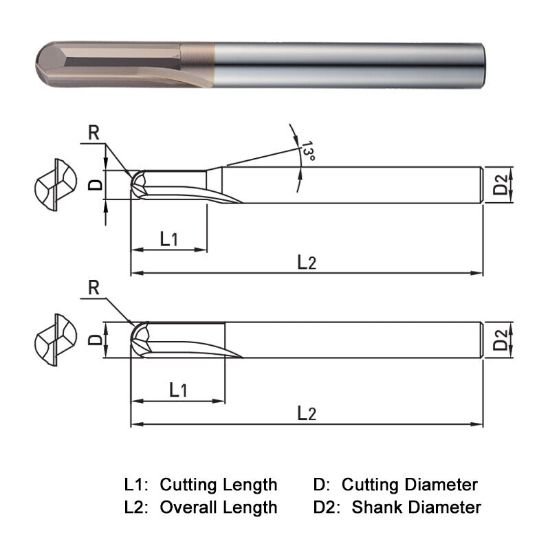

Picture of Widin WSB502200 Dia 20mm SH 0.7874 LOC 1.5748 OAL5.9055 End Mill Standard Flute High Helix Carbide AlTiN Single End Ball NoseBall WINNER

Widin WSB502200 Dia 20mm SH 0.7874 LOC 1.5748 OAL5.9055 End Mill Standard Flute High Helix Carbide AlTiN Single End Ball NoseBall WINNER

Part Number: WIDWSB502200

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1224694
Vendor: Sussex Tool and Supply
$472.72
Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 0.7874 20.00MM
Cutter Type Solid End Mill
Length Type STANDARD
Performance Rating High Performance
Center Cutting Center Cutting
Overall Length 5.9055 150.00MM
Machine Side (Toolpost) CYLINDRICAL0.7874
Cutting Edge Definition or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance., as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), Cemented carbides are a class of hard materials used extensively for cutting tools
Length Of Cut 1.5748 40.00MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Inch Or Metric Metric
Machine Side (Toolpost) Connection Type Cylindrical
Flutes Or Inserts 2
Shipping State ILLINOIS
Family Group Winner
Single Or Double End Single End
Cutting Edge Material Carbide
Tool Material Carbide
Mach Side Connection Size 0.7874 20.00MM
Coating AlTiN
Tool Diameter 0.7874 20.00MM
Coolant Thru Non Coolant
Helix Angle 30°
Made In USA No
