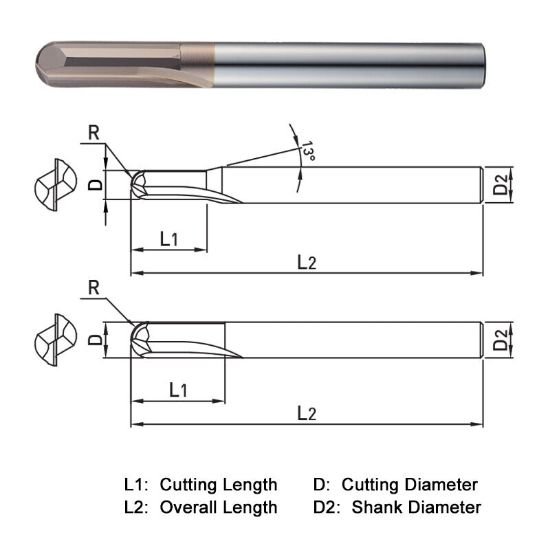

Widin WSB502160 Dia 16mm SH 0.6299 LOC 1.3780 OAL5.9055 End Mill Standard Flute High Helix Carbide AlTiN Single End Ball NoseBall WINNER

Part Number: WIDWSB502160

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1224693
Vendor: Sussex Tool and Supply
$345.94
WIDIN High Helix End Mill Carbide AlTiN Ball Nose Ball Standard Flute Flutes 2 Single End WINNER Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.6299 16.00MM
Overall Length 5.9055 150.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 2
Tool Dia 0.6299 16.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.3780 35.00MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 30
Center Cutting Center Cutting
