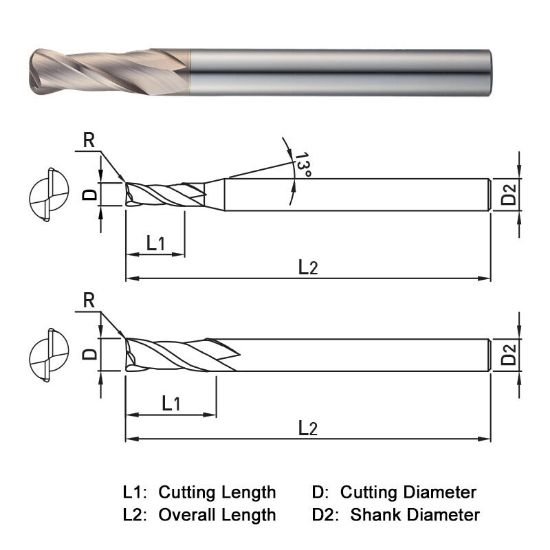

Picture of Widin WR50201203 Dia 1.20mm SH 0.2362 LOC 0.1181 OAL1.968 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0118 0.30mm WINNER

Widin WR50201203 Dia 1.20mm SH 0.2362 LOC 0.1181 OAL1.968 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0118 0.30mm WINNER

Part Number: WIDWR50201203

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1223424
Vendor: Sussex Tool and Supply
$27.13
WIDIN Standard Helix End Mill Carbide AlTiN Corner Radius 0.0118 0.30MM Standard Flute Flutes 2 Single End WINNER Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.2362 6.00MM
Overall Length 1.9685 50.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.0472 1.20MM
Length Type LONG
Performance Rating High Performance
Length Of Cut 0.1181 3.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0118 0.30MM
Inch/Metric Metric
Helix Angle 30
Center Cutting Center Cutting
