WIDIN WAR523A064120 DIA 1 SH 1.00 LOC 3.2500 OAL6.00 End Mill Standard Flute High Helix Carbide DLC Single End Corner Radius0.1200 3.05MM ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAR523A064120
Delivery date: 3-5 days
$763.12
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#42, Material#20, Material#25
Performance Rating High Performance
Additional Key Information 1 End Mill
Application Side Milling, Copy Milling, Profile Milling, Slot Milling, Face Milling
Shipping State Illinois
Sold by Pieces 1
Additional Key Information 3 Standard Flute
Additional Key Information 4 High Helix
Additional Key Information 2 Corner Radius
Coating DLC
Package Size 1
Uncategorized
Made In USA No

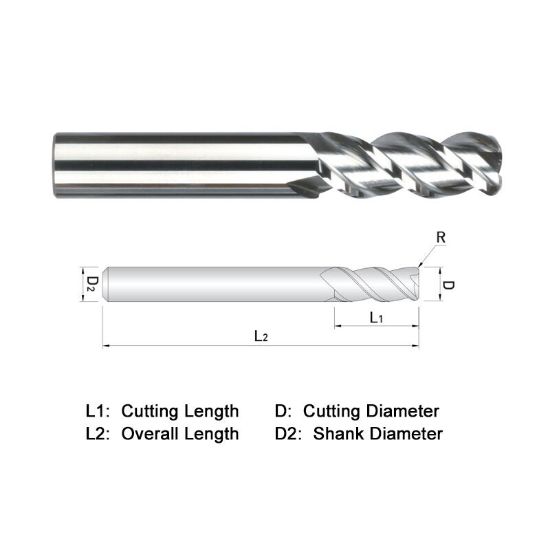

Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 6.0000 152.40MM
Corner Radius 0.1200 3.05MM
Cutter Dia 1.0000 25.40MM
Helix Angle 45°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
End Of Tool Shape Corner Radius
Machine Side CYLINDRICAL1.0000
Length Type Long
Length Of Cut 3.2500 82.55MM
Single/Double End Single End
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
