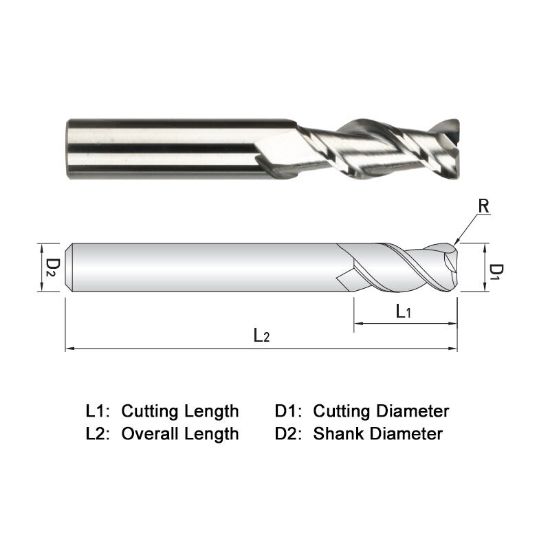

WIDIN WAR512A012010 DIA 3/16 SH 0.1875 LOC 0.5625 OAL2.00 End Mill Standard Flute High Helix Carbide DLC Single End Corner Radius0.0100 0.25MM ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAR512A012010
Delivery date: 3-5 days
$43.69
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#42, Material#20, Material#25
Application Copy Milling, Side Milling, Face Milling, Profile Milling, Slot Milling
Performance Rating High Performance
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Sold by Pieces 1
Additional Key Information 4 High Helix
Coating DLC
Shipping State Illinois
Additional Key Information 2 Corner Radius
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.1875 4.76MM - 3/16
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.5625 14.29MM
Inch/Metric Inch
Corner Radius 0.0100 0.25MM
Machine Side Connection Size 0.1875 4.76MM
Helix Angle 45°
End Of Tool Shape Corner Radius
Single/Double End Single End
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Overall Len 2.0000 50.80MM
Length Type Standard
Machine Side CYLINDRICAL0.1875
Flutes/Inserts 2
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
