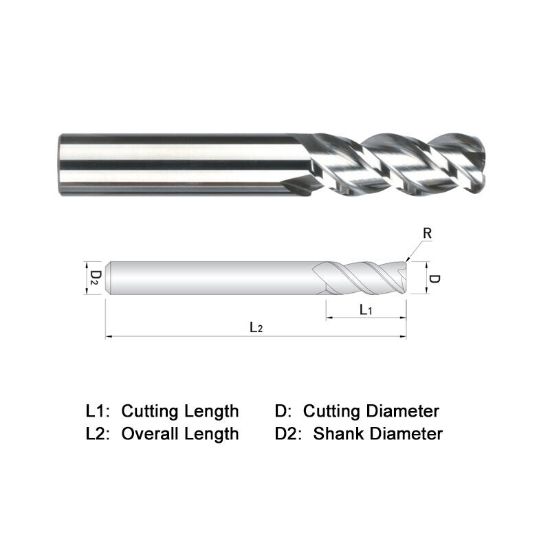

WIDIN WAR503A024060 DIA 3/8 SH 0.3750 LOC 0.50 OAL2.50 End Mill Standard Flute High Helix Carbide DLC Single End Corner Radius0.0600 1.52MM ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAR503A024060
Delivery date: 3-5 days
$56.24
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#42, Material#20, Material#25
Application Copy Milling, Face Milling, Profile Milling, Side Milling, Slot Milling
Performance Rating High Performance
Additional Key Information 2 Corner Radius
Package Size 1
Sold by Pieces 1
Additional Key Information 4 High Helix
Coating DLC
Shipping State Illinois
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Uncategorized
Made In USA No
Dimensional Specifications
Cutter Dia 0.3750 9.53MM - 3/8
Helix Angle 45°
Cut Rating Aluminum, Graphite, Plastic
Machine Side CYLINDRICAL0.3750
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Overall Len 2.5000 63.50MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Corner Radius 0.0600 1.52MM
Machine Side Connection Size 0.3750 9.53MM
Length Of Cut 0.5000 12.70MM
Length Type Stub
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
