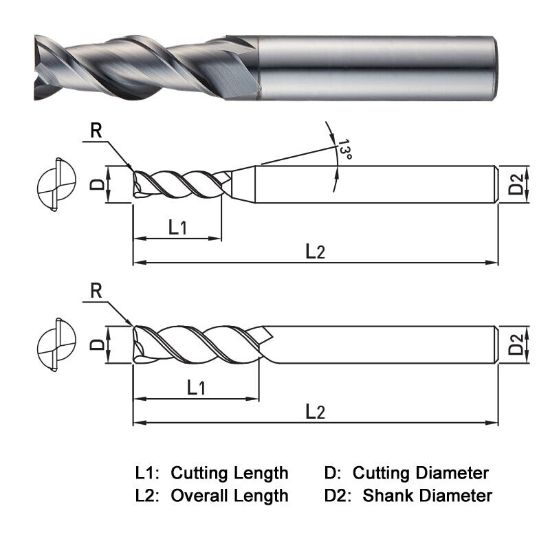

WIDIN WAR502040 DIA 4MM SH 0.2362 LOC 0.4724 OAL1.9685 End Mill Standard Flute High Helix Carbide DLC Single End Corner Radius0.0039 0.10MM ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAR502040
Delivery date: 3-5 days
$69.86
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 2 Corner Radius
Application Face Milling, Side Milling, Copy Milling, Profile Milling, Slot Milling
Coating DLC
Package Size 1
Material # Material#20, Material#25, Material#42
Additional Key Information 1 End Mill
Shipping State Illinois
Sold by Pieces 1
Performance Rating High Performance
Additional Key Information 3 Standard Flute
Additional Key Information 4 High Helix
Uncategorized
Made In USA No
Dimensional Specifications
Inch/Metric Metric
Single/Double End Single End
Length Type Stub
Machine Side Connection Size 0.2362 6.00MM
Helix Angle 45°
Corner Radius 0.0039 0.10MM
Machine Side CYLINDRICAL0.2362
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Overall Len 1.9685 50.00MM
Cutter Style Carbide Bull Nose Finisher
Flutes/Inserts 2
Length Of Cut 0.4724 12.00MM
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.1574 4.00MM
End Of Tool Shape Corner Radius
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
