WIDIN WAR303A024020 DIA 3/8 SH 0.3750 LOC 0.50 OAL2.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0200 0.51MM ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAR303A024020
Delivery date: 3-5 days
$52.87
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 2 Corner Radius
Package Size 1
Material # Material#20, Material#25, Material#42
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Application Side Milling, Face Milling, Profile Milling, Slot Milling, Copy Milling
Additional Key Information 4 High Helix
Sold by Pieces 1
Performance Rating High Performance
Shipping State Illinois
Uncategorized
Made In USA No

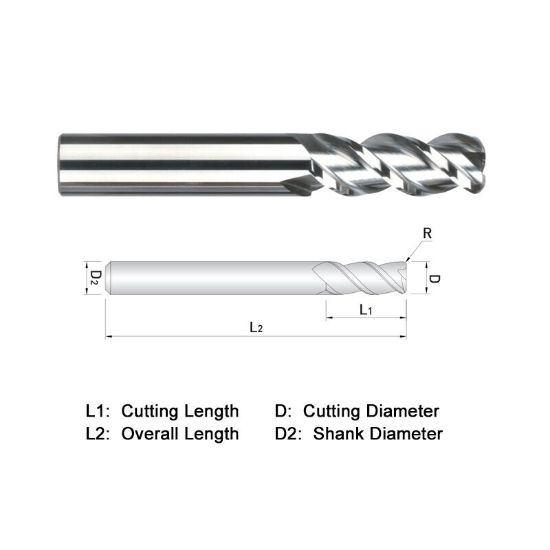

Dimensional Specifications
Length Of Cut 0.5000 12.70MM
Length Type Stub
Cutter Dia 0.3750 9.53MM - 3/8
Helix Angle 45°
Overall Len 2.5000 63.50MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Corner Radius 0.0200 0.51MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cut Rating Aluminum, Graphite, Plastic
Machine Side CYLINDRICAL0.3750
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Machine Side Connection Size 0.3750 9.53MM
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
