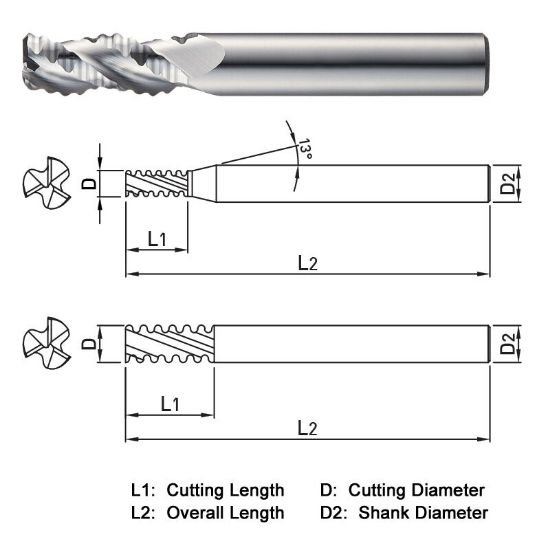

Widin WAF303162 Dia 16mm SH 0.6299 LOC 2.5591 OAL4.9213 End Mill Carbide Uncoated Single End Square Sharp ALU-WAVE

Part Number: WIDWAF303162

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1218098
$521.16
Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 0.6299 16.00MM
Cutter Type Solid End Mill
Length Type STANDARD
Performance Rating High Performance
Center Cutting Center Cutting
Overall Length 4.9213 125.00MM
Machine Side (Toolpost) WELDON0.6299
Cutting Edge Definition or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance., as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), Cemented carbides are a class of hard materials used extensively for cutting tools
Length Of Cut 2.5591 65.00MM
End Of Tool Shape Square
Cutter Style Carbide Rougher
Inch Or Metric Metric
Machine Side (Toolpost) Connection Type Weldon
Flutes Or Inserts 3
Shipping State ILLINOIS
Family Group ALU-WAVE
Single Or Double End Single End
Cutting Edge Material Carbide
Tool Material Carbide
Mach Side Connection Size 0.6299 16.00MM
Tool Diameter 0.6299 16.00MM
Coolant Thru Non Coolant
Helix Angle 38°
Made In USA No
