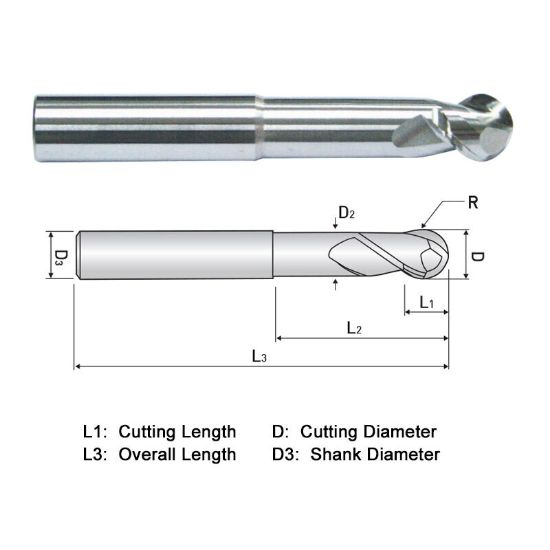

WIDIN WAB512A012 DIA 3/16 SH 0.1875 LOC 0.1875 OAL3.00 End Mill Standard Flute High Helix Carbide DLC Single End Ball NoseBall ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAB512A012
Delivery date: 3-5 days
$48.92
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Copy Milling, Ball Milling, Ball Slot Milling, Side Milling
Coating DLC
Sold by Pieces 1
Shipping State Illinois
Material # Material#42, Material#25, Material#20
Performance Rating High Performance
Additional Key Information 2 Ball Nose
Package Size 1
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Additional Key Information 4 High Helix
Uncategorized
Made In USA No
Dimensional Specifications
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Helix Angle 50°
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Length Type Stub / With Neck
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.1875 4.76MM - 3/16
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Machine Side Connection Size 0.1875 4.76MM
End Of Tool Shape Ball Nose
Neck Length 0.5620 14.27MM
Machine Side CYLINDRICAL0.1875
Flutes/Inserts 2
Length Of Cut 0.1875 4.76MM
Overall Len 3.0000 76.20MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
