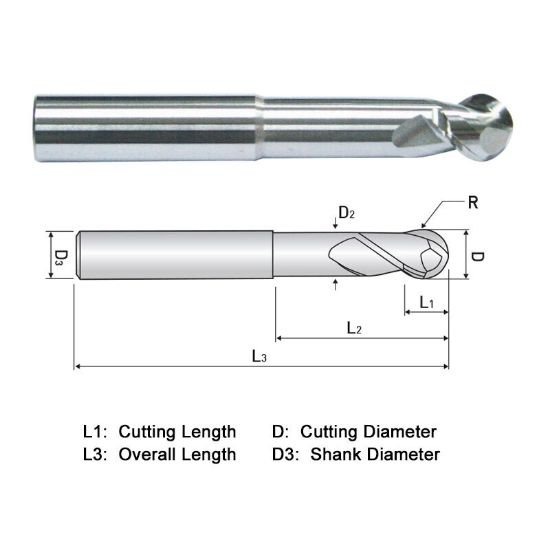

Picture of Widin WAB312A016 Dia 1/4 SH 0.2500 LOC 0.2500 OAL3.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball NoseBall ALU-WAVE

Widin WAB312A016 Dia 1/4 SH 0.2500 LOC 0.2500 OAL3.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball NoseBall ALU-WAVE

Part Number: WIDWAB312A016
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1217762
Vendor: Sussex Tool and Supply
$40.68

Description

WIDIN High Helix End Mill Carbide Uncoated Ball Nose Ball Standard Flute Flutes 2 Single End ALU-WAVE Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Stub / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 2
Tool Dia 0.2500 6.35MM - 1/4 - E
Length Of Cut 0.2500 6.35MM
Neck Length 2.0000 50.80MM
Geometry & Angles
Helix Angle 50
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
