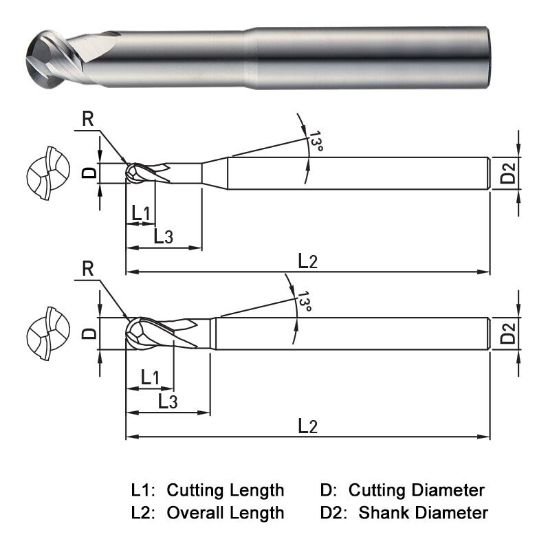

Picture of Widin WAB312200 Dia 20mm SH 0.7874 LOC 0.6693 OAL3.9370 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball NoseBall ALU-WAVE

Widin WAB312200 Dia 20mm SH 0.7874 LOC 0.6693 OAL3.9370 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball NoseBall ALU-WAVE

Part Number: WIDWAB312200
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1217759
Vendor: Sussex Tool and Supply
$401.06

Description

WIDIN High Helix End Mill Carbide Uncoated Ball Nose Ball Standard Flute Flutes 2 Single End ALU-WAVE Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Stub / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 2
Tool Dia 0.7874 20.00MM
Length Of Cut 0.6693 17.00MM
Neck Length 0.9843 25.00MM
Geometry & Angles
Helix Angle 45
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
