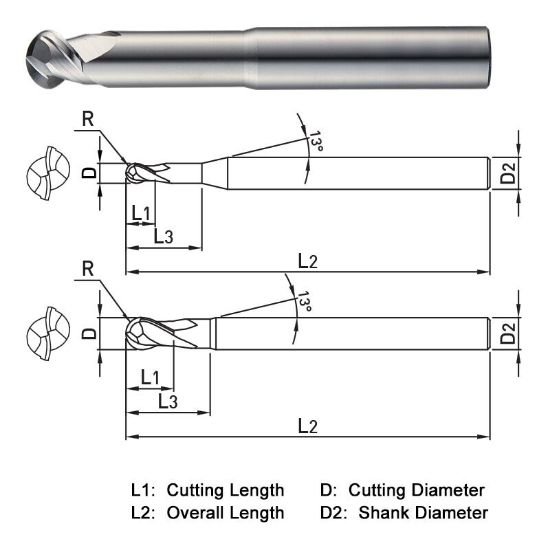

Picture of Widin WAB312160 Dia 16mm SH 0.6299 LOC 0.5510 OAL3.5433 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball NoseBall ALU-WAVE

Widin WAB312160 Dia 16mm SH 0.6299 LOC 0.5510 OAL3.5433 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball NoseBall ALU-WAVE

Part Number: WIDWAB312160

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1217756
Vendor: Sussex Tool and Supply
$392.93
WIDIN High Helix End Mill Carbide Uncoated Ball Nose Ball Standard Flute Flutes 2 Single End ALU-WAVE Carbide
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.6299 16.00MM
Overall Length 3.5433 90.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 2
Tool Dia 0.6299 16.00MM
Length Type Stub / With Neck
Performance Rating High Performance
Length Of Cut 0.5510 14.00MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 45
Center Cutting Center Cutting
Neck Length 0.9843 25.00MM
