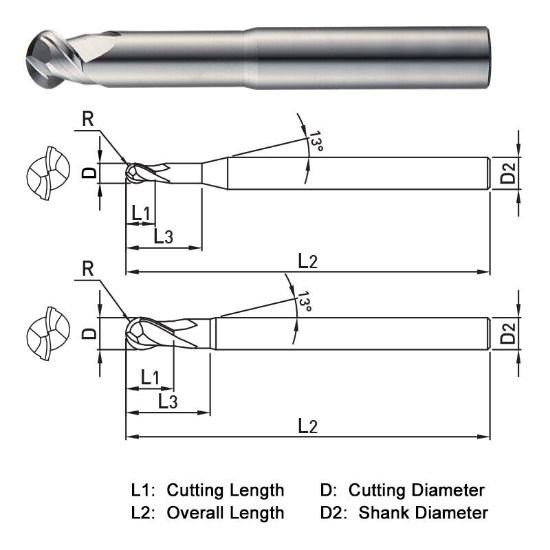

Picture of Widin WAB312080 Dia 8mm SH 0.3150 LOC 0.2756 OAL2.5591 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball NoseBall ALU-WAVE

Widin WAB312080 Dia 8mm SH 0.3150 LOC 0.2756 OAL2.5591 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball NoseBall ALU-WAVE

Part Number: WIDWAB312080
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1217748
Vendor: Sussex Tool and Supply
$67.69

Description

WIDIN High Helix End Mill Carbide Uncoated Ball Nose Ball Standard Flute Flutes 2 Single End ALU-WAVE Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Stub / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.5591 65.00MM
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 2
Tool Dia 0.3150 8.00MM
Length Of Cut 0.2756 7.00MM
Neck Length 0.9843 25.00MM
Geometry & Angles
Helix Angle 45
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
