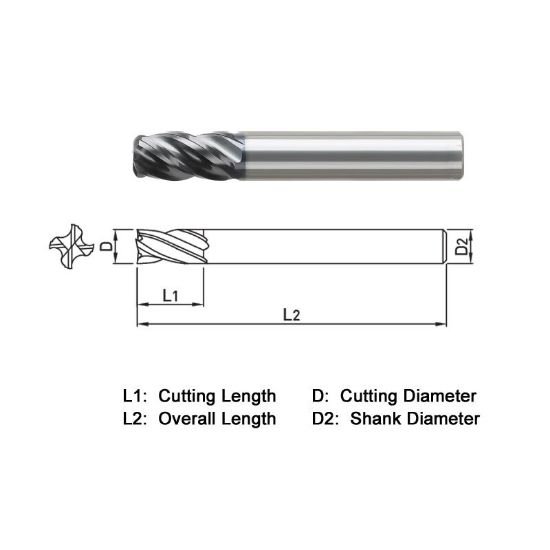

Picture of Widin VXR514A064030N Dia 1 SH 0.50 LOC 1.1250 OAL5.00 End Mill Standard Flute Variable Helix Carbide TiAlN Single End Corner Radius0.0300 0.76mm VH Series

Widin VXR514A064030N Dia 1 SH 0.50 LOC 1.1250 OAL5.00 End Mill Standard Flute Variable Helix Carbide TiAlN Single End Corner Radius0.0300 0.76mm VH Series

Part Number: WIDVXR514A064030N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1229240
Vendor: Sussex Tool and Supply
$678.74
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Cutter Type Solid End Mill
Made In USA No
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.5000
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 5.0000 127.00MM
Shank Or Pilot Diameter 0.5000 12.70MM - 1/2
Family Group VH Series
Coolant Thru Non Coolant
Coating TiAlN
Mach Side Connection Size 0.5000 12.70MM - 1/2
Tool Diameter 1.0000 25.40MM
Flutes Or Inserts 4
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 1.1250 28.58MM
End Of Tool Shape Corner Radius
Cutter Style Carbide Bull Nose Finisher
Single Or Double End Single End
Corner Radius 0.0300 0.76MM
Inch Or Metric Inch
Helix Angle Variable
Center Cutting Center Cutting
Neck Length 2.6250 66.68MM
