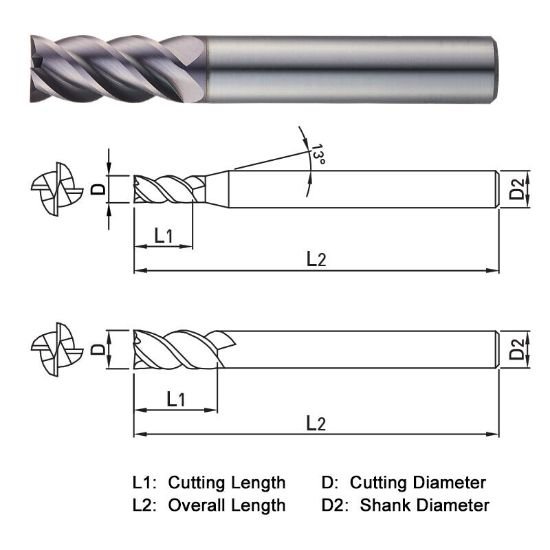

Picture of Widin TX304H200 Dia 20mm SH 0.7874 LOC 1.4961 OAL 3.9370 End Mill High Helix Carbide TiAlN Single End Square Sharp THUNDER

Widin TX304H200 Dia 20mm SH 0.7874 LOC 1.4961 OAL 3.9370 End Mill High Helix Carbide TiAlN Single End Square Sharp THUNDER

Part Number: WIDTX304H200
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$182.51
SKU: 1219756

Description

WIDIN High Helix End Mill Carbide TiAlN Square Sharp 4 Flute Single End THUNDER
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 4
Tool Dia 0.7874 20.00MM
Length Of Cut 1.4961 38.00MM
Geometry & Angles
Helix Angle 45
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
