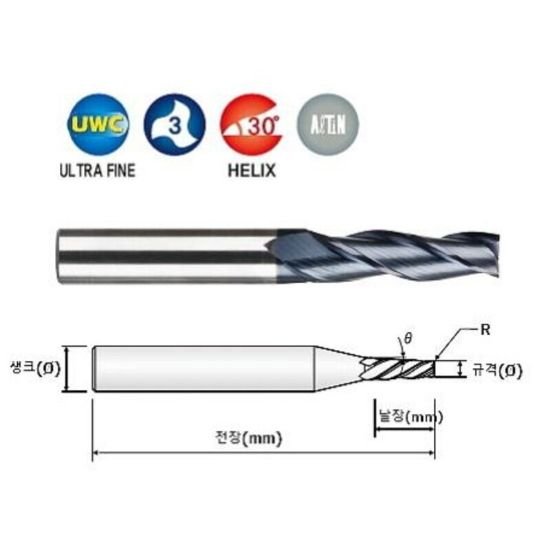

Picture of Widin TE50310314 Dia 10mm SH 0.5512 LOC 1.3780 OAL3.5433 End Mill Taper Flute Carbide AlTiN Single End Square Sharp Z-ClassIC

Widin TE50310314 Dia 10mm SH 0.5512 LOC 1.3780 OAL3.5433 End Mill Taper Flute Carbide AlTiN Single End Square Sharp Z-ClassIC

Part Number: WIDTE50310314

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1220642
Vendor: Sussex Tool and Supply
$0.00
WIDIN End Mill Carbide AlTiN Square Sharp Taper Flute Flutes 3 Single End Z-CLASSIC Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.5512 14.00MM
Overall Length 3.5433 90.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5512 14.00MM
Flutes/Inserts 3
Tool Dia 0.3937 10.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.3780 35.00MM
End Of Tool Shape Square
Cutter Style Taper Flute Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 30
Center Cutting Center Cutting
Taper/Straight Flute Taper Flute
Taper Angle 3.0°
