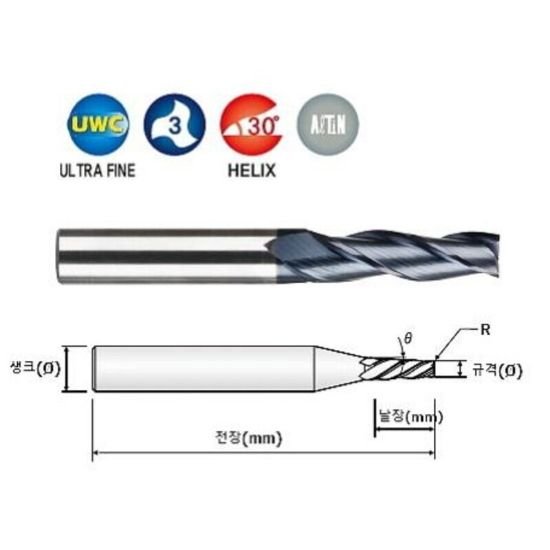

Picture of Widin TE50303506 Dia 3mm SH 0.2362 LOC 0.3937 OAL1.9685 End Mill Taper Flute Carbide AlTiN Single End Square Sharp Z-ClassIC

Widin TE50303506 Dia 3mm SH 0.2362 LOC 0.3937 OAL1.9685 End Mill Taper Flute Carbide AlTiN Single End Square Sharp Z-ClassIC

Part Number: WIDTE50303506
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1220623
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

WIDIN End Mill Carbide AlTiN Square Sharp Taper Flute Flutes 3 Single End Z-CLASSIC Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Square
Cutter Style Taper Flute Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Taper/Straight Flute Taper Flute
Dimensions & Sizing
Overall Length 1.9685 50.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 3
Tool Dia 0.1181 3.00MM
Length Of Cut 0.3937 10.00MM
Geometry & Angles
Helix Angle 30
Taper Angle 5.0°
Performance & Capacity
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
