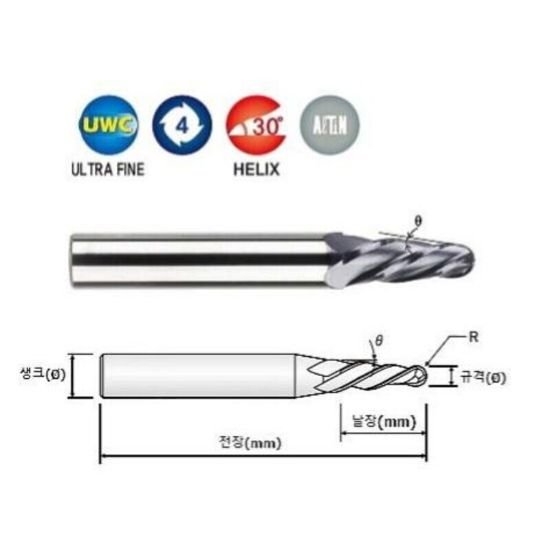

Picture of Widin TB50430310 Dia 6mm SH 0.3937 LOC 0.8661 OAL2.7559 End Mill Taper Flute Carbide AlTiN Single End Ball NoseBall Z-ClassIC

Widin TB50430310 Dia 6mm SH 0.3937 LOC 0.8661 OAL2.7559 End Mill Taper Flute Carbide AlTiN Single End Ball NoseBall Z-ClassIC

Part Number: WIDTB50430310

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1220608
Vendor: Sussex Tool and Supply
$0.00
WIDIN End Mill Carbide AlTiN Ball Nose Ball Taper Flute Flutes 4 Single End Z-CLASSIC Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.3937 10.00MM
Overall Length 2.7560 70.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 4
Tool Dia 0.2362 6.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.8660 22.00MM
End Of Tool Shape Ball Nose
Cutter Style Ball Taper Flute Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 30
Center Cutting Center Cutting
Taper/Straight Flute Taper Flute
Taper Angle 3.0°
