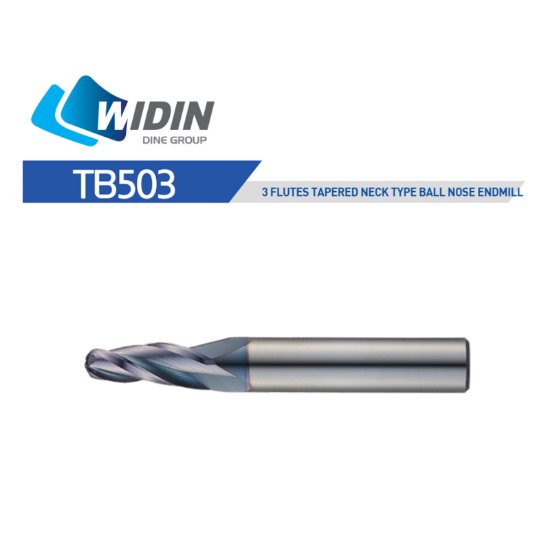

Picture of Widin TB50340716 Dia 8mm SH 0.6299 LOC 1.0236 OAL3.5433 End Mill Taper Flute Carbide AlTiN Single End Ball NoseBall Z-ClassIC

Widin TB50340716 Dia 8mm SH 0.6299 LOC 1.0236 OAL3.5433 End Mill Taper Flute Carbide AlTiN Single End Ball NoseBall Z-ClassIC

Part Number: WIDTB50340716
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1220598
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

WIDIN End Mill Carbide AlTiN Ball Nose Ball Taper Flute Flutes 3 Single End Z-CLASSIC Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Ball Nose
Cutter Style Ball Taper Flute Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Taper/Straight Flute Taper Flute
Dimensions & Sizing
Overall Length 3.5433 90.00MM
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 3
Tool Dia 0.3150 8.00MM
Length Of Cut 1.0236 26.00MM
Geometry & Angles
Helix Angle 30
Taper Angle 7.0°
Performance & Capacity
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
