WIDIN SSTD016 1.60MM DIA 118° POINT 2 Flute 3XD Drill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDSSTD016
Delivery date: 3-5 days
$16.29
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#2, Material#20, Material#21
Coating TiN
Package Size 1
Application Dilling, Drilling Flood Coolant
Shipping State Illinois
Sold by Pieces 1
Additional Key Information 1 Carbide Drill
Additional Key Information 2 Solid
Uncategorized
Made In USA No

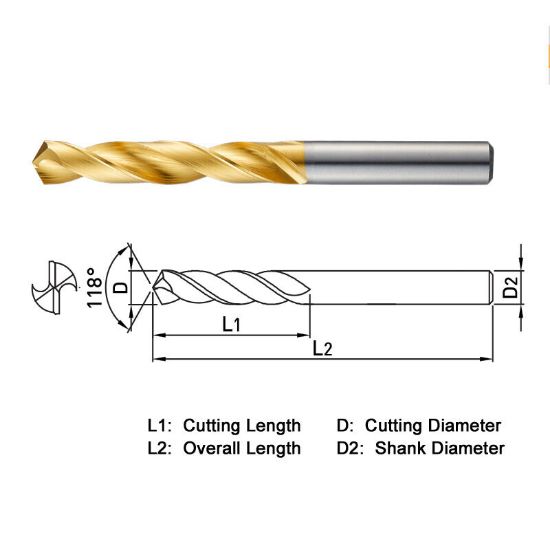

Dimensional Specifications
Cut Dia Min 0.0629 1.60MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Included Angle 118°
Overall Len 1.4961 38.00MM
Shank/Pilot Dia 0.0629 1.60MM
Cutter Dia 0.0630 1.60MM
Machine Side Connection Size 0.0630 1.60MM
Flute Length 0.5120 13.00MM
Machine Side CYLINDRICAL0.0629
Flutes/Inserts 2
Cut Rating <25HRC Steel, Aluminium, Brass
Dia Deep 3.0XD
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
