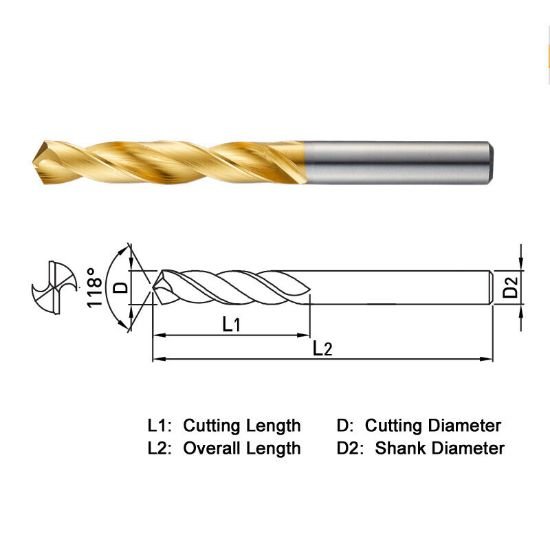

Picture of Widin SSTD009 0.90mm Dia 118° Point 2 Flute 3XD Drill Carbide Non Coolant

Widin SSTD009 0.90mm Dia 118° Point 2 Flute 3XD Drill Carbide Non Coolant

Part Number: WIDSSTD009 0.035 x 0.035 x 0.433 x 1.260
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$16.74
SKU: 1145074

Description

WIDIN SSTD009 Carbide Drill 0.90MM DIA 118° Point 2 Flute 3XD Drill Solid TiN
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 1.2600 32.00MM
Length Of Cut 0.4331 11.00MM
Flute Length 0.4330 11.00MM
Dia Deep 3.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.0354 0.90MM
Tool Dia 0.0354 0.90MM
Geometry & Angles
Included Angle 118°
Performance & Capacity
Cut Dia Min 0.0354 0.90MM
Cut Rating <25HRC Steel, Aluminum, Brass
Materials & Finish
Cutting Edge Mat Carbide
Coating TIN
Tool Material Carbide
