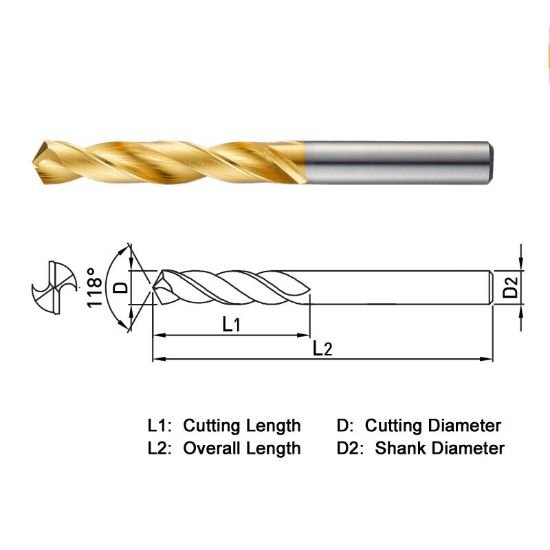

Picture of Widin SSTD005 1/2" Dia 118° Point 2 Flute 3XD Drill

Widin SSTD005 1/2" Dia 118° Point 2 Flute 3XD Drill

Part Number: WIDSSTD005
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$24.55
SKU: 1145067

Description

WIDIN SSTD005 Carbide Drill 1/2" DIA 118° POINT 2 FLUTE 3XD DRILL Solid TiN Carbide Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 0.8661 22.00MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.5000 12.70MM - 1/2
Flute Length 0.2360 5.99MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 118°
Performance & Capacity
Cut Rating Aluminum, <25HRC Steel, Brass
Cut Dia Min 0.5000 12.70MM - 1/2
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TIN
