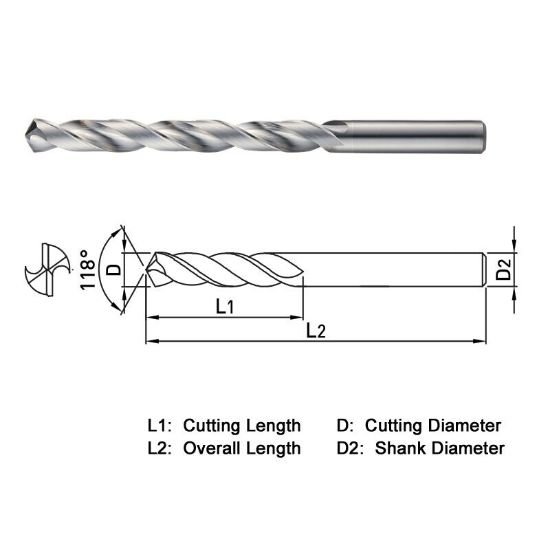

Picture of Widin SSDL050 5.00mm Dia 118° Point 2 Flute 8XD Drill Carbide Non Coolant

Widin SSDL050 5.00mm Dia 118° Point 2 Flute 8XD Drill Carbide Non Coolant

Part Number: WIDSSDL050
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$30.90
SKU: 1145016

Description

WIDIN SSDL050 Carbide Drill 5.00MM DIA 118° Point 2 Flute 8XD Drill Solid Uncoated
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 3.5433 90.00MM
Flute Length 2.3230 59.00MM
Dia Deep 8.0x Dia
Flutes/Inserts 2
Tool Dia 0.1969 5.00MM
Geometry & Angles
Included Angle 118°
Performance & Capacity
Cut Dia Min 0.1969 5.00MM
Cut Rating <25HRC Steel, Aluminum
Materials & Finish
Cutting Edge Mat Carbide
Tool Material Carbide
