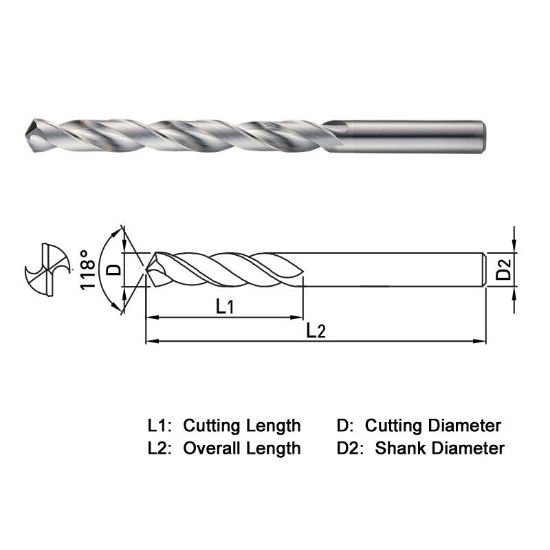

Picture of Widin SSDL038 3.80mm Dia 118° Point 2 Flute 8XD Drill

Widin SSDL038 3.80mm Dia 118° Point 2 Flute 8XD Drill

Part Number: WIDSSDL038
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$23.51
SKU: 1145004

Description

WIDIN SSDL038 Carbide Drill 3.80MM DIA 118° POINT 2 FLUTE 8XD DRILL Solid Uncoated Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 3.1496 80.00MM
Flutes/Inserts 2
Tool Dia 0.1495 3.80MM - #25
Flute Length 1.8900 48.01MM
Dia Deep 8.0x Dia
Geometry & Angles
Included Angle 118°
Performance & Capacity
Cut Rating Aluminum, <25HRC Steel
Cut Dia Min 0.1496 3.80MM - #25
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
