Picture of Widin SSD054 5.40mm Dia 118° Point 2 Flute 5XD Drill Carbide Non Coolant

Widin SSD054 5.40mm Dia 118° Point 2 Flute 5XD Drill Carbide Non Coolant

Part Number: WIDSSD054
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$23.90
SKU: 1144935

Description

WIDIN SSD054 Carbide Drill 5.40MM DIA 118° Point 2 Flute 5XD Drill Solid Uncoated
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill

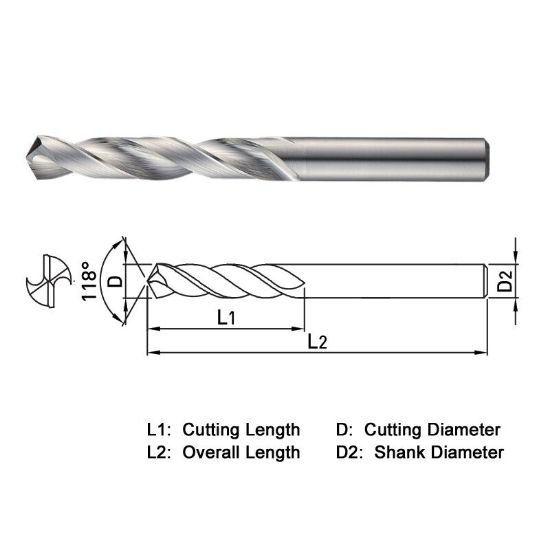

Dimensions & Sizing
Overall Length 2.5591 65.00MM
Flute Length 1.3780 35.00MM
Dia Deep 5.0x Dia
Flutes/Inserts 2
Tool Dia 0.2126 5.40MM
Geometry & Angles
Included Angle 118°
Performance & Capacity
Cut Dia Min 0.2126 5.40MM
Cut Rating <25HRC Steel, Aluminum
Materials & Finish
Cutting Edge Mat Carbide
Tool Material Carbide
