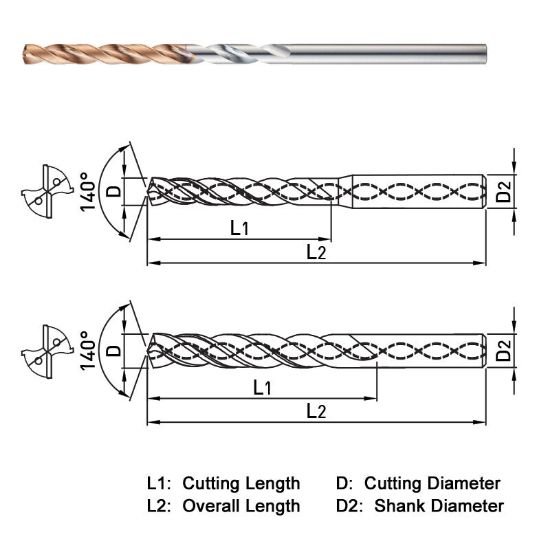

Widin SF510128 12.80mm Dia 140° Point 2 Flute 10XD Drill

Part Number: WIDSF510128

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1143827
$869.01
WIDIN SF510128 Deep Hole Over 8Xd 12.80MM DIA 140° POINT 2 FLUTE 10XD DRILL Coolant Thru TiAlN + HH Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, >50HRC Steel
Coating TiAlN + HH
Mach Side Connection Size 0.5118 13.00MM
Overall Length 9.2913 236.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.5118 13.00MM
Flutes/Inserts 2
Tool Dia 0.5040 12.80MM
Type Of Tool Drill
Included Angle 140°
Flute Length 6.6930 170.00MM
Cut Dia Min 0.5040 12.80MM
Dia Deep 10.0x Dia
