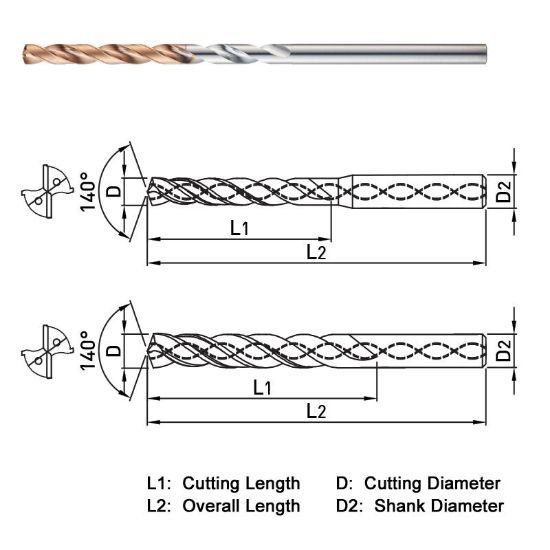

Widin SF510126 12.60mm Dia 140° Point 2 Flute 10XD Drill

Part Number: WIDSF510126

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1143825
$924.48
Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 0.5118 13.00MM
Cutter Type Carbide Drill
Overall Length 9.2913 236.00MM
Machine Side (Toolpost) CYLINDRICAL0.5118
Cutting Edge Definition or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance., as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), Cemented carbides are a class of hard materials used extensively for cutting tools
Type of Tool Drill
Machine Side (Toolpost) Connection Type Cylindrical
Included Angle 140°
Flutes Or Inserts 2
Shipping State ILLINOIS
Family Group Widin
Cutting Edge Material Carbide
Tool Material Carbide
Mach Side Connection Size 0.5118 13.00MM
Coating TiAlN + HH
Tool Diameter 0.4961 12.60MM
Cut Diameter Min 0.4961 12.60MM
Coolant Thru Thru Coolant
Made In USA No
Flute Length 6.6930 170.00MM
Diameter Deep 10.0x Dia
