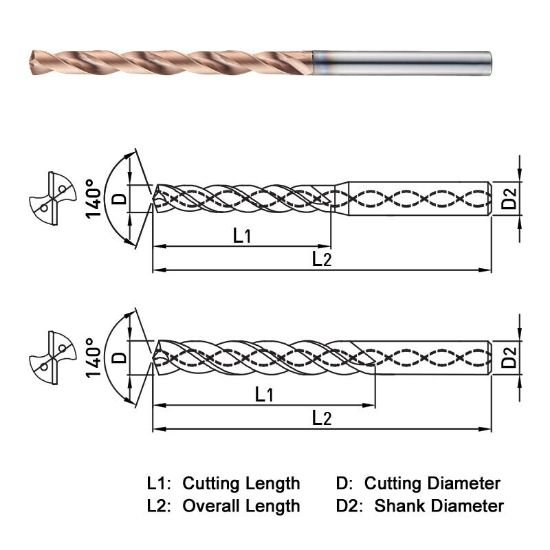

Picture of Widin SF508143 14.30mm Dia 140° Point 2 Flute 8XD Drill

Widin SF508143 14.30mm Dia 140° Point 2 Flute 8XD Drill

Part Number: WIDSF508143
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1144475
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

WIDIN SF508143 Carbide Drill 14.30MM DIA 140° POINT 2 FLUTE 8XD DRILL Coolant Thru AlTiN Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Flutes/Inserts 2
Tool Dia 0.5630 14.30MM
Dia Deep 8.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, >50HRC Steel
Cut Dia Min 0.5630 14.30MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
