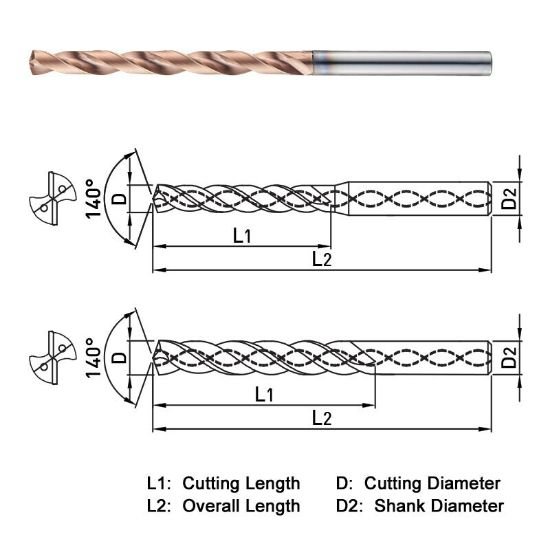

Picture of Widin SF508128 12.80mm Dia 140° Point 2 Flute 8XD Drill Carbide Thru Coolant

Widin SF508128 12.80mm Dia 140° Point 2 Flute 8XD Drill Carbide Thru Coolant

Part Number: WIDSF508128
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$289.53
SKU: 1144438

Description

WIDIN SF508128 Carbide Drill 12.80MM DIA 140° Point 2 Flute 8XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 7.1654 182.00MM
Flute Length 5.2360 132.99MM
Dia Deep 8.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.5118 13.00MM
Tool Dia 0.5040 12.80MM
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.5040 12.80MM
Cut Rating >50HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
