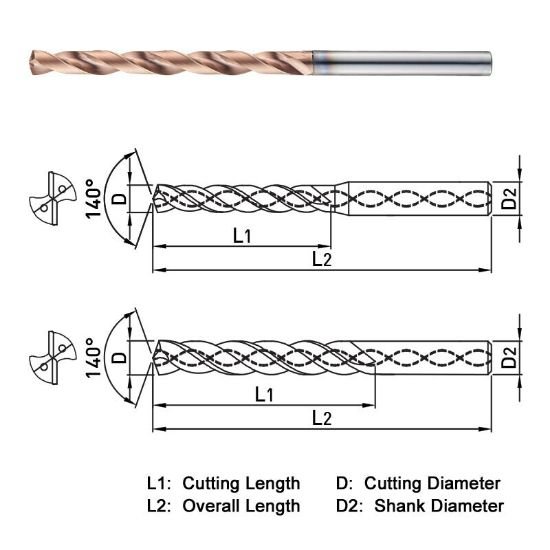

Picture of Widin SF50804039 4.039mm Dia 140° Point 2 Flute 8XD Drill Carbide Thru Coolant

Widin SF50804039 4.039mm Dia 140° Point 2 Flute 8XD Drill Carbide Thru Coolant

Part Number: WIDSF50804039
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$83.46
SKU: 1144328

Description

WIDIN SF50804039 Carbide Drill 4.039MM DIA 140° Point 2 Flute 8XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 3.4252 87.00MM
Flute Length 1.9290 49.00MM
Dia Deep 8.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.1969 5.00MM
Tool Dia 0.1590 4.04MM - #21
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.1590 4.04MM - #21
Cut Rating >50HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
