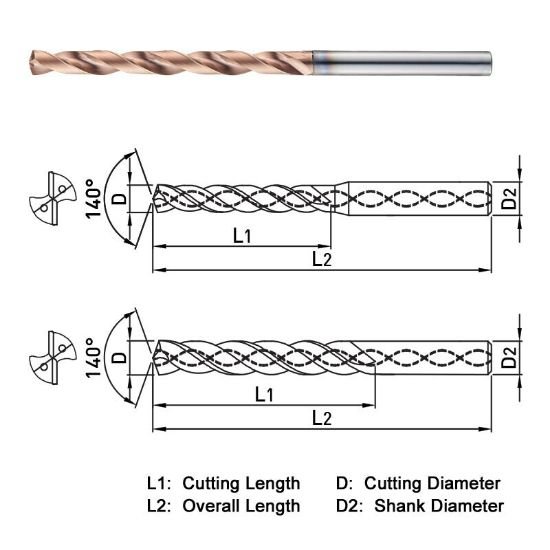

Picture of Widin SF508037 3.70mm Dia 140° Point 2 Flute 8XD Drill Carbide Thru Coolant

Widin SF508037 3.70mm Dia 140° Point 2 Flute 8XD Drill Carbide Thru Coolant

Part Number: WIDSF508037
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$81.53
SKU: 1144323

Description

WIDIN SF508037 Carbide Drill 3.70MM DIA 140° Point 2 Flute 8XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 3.1496 80.00MM
Shank/Pilot Dia 0.1574 4.00MM
Flutes/Inserts 2
Tool Dia 0.1457 3.70MM
Flute Length 1.6930 43.00MM
Dia Deep 8.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, >50HRC Steel
Cut Dia Min 0.1457 3.70MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN + HH
