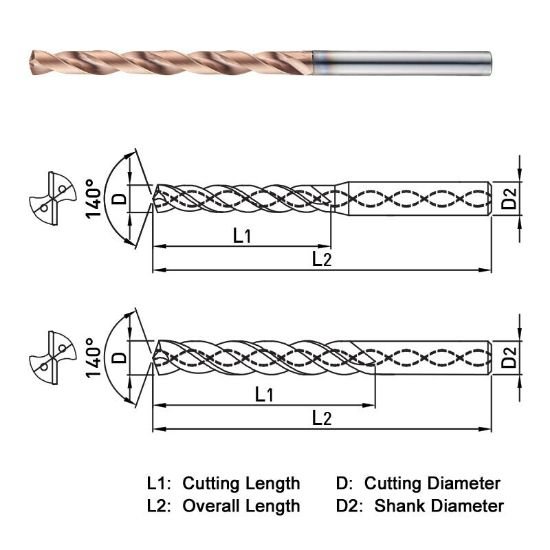

Picture of Widin SF50803175 3.175 - 1/8 Dia 140° Point 2 Flute 8XD Drill Carbide Thru Coolant

Widin SF50803175 3.175 - 1/8 Dia 140° Point 2 Flute 8XD Drill Carbide Thru Coolant

Part Number: WIDSF50803175
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$81.53
SKU: 1144316

Description

WIDIN SF50803175 Carbide Drill 3.175 - 1/8 DIA 140° Point 2 Flute 8XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 3.1496 80.00MM
Flute Length 1.6930 43.00MM
Dia Deep 8.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.1574 4.00MM
Tool Dia 0.1250 3.18MM - 1/8
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.1250 3.18MM - 1/8
Cut Rating >50HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
