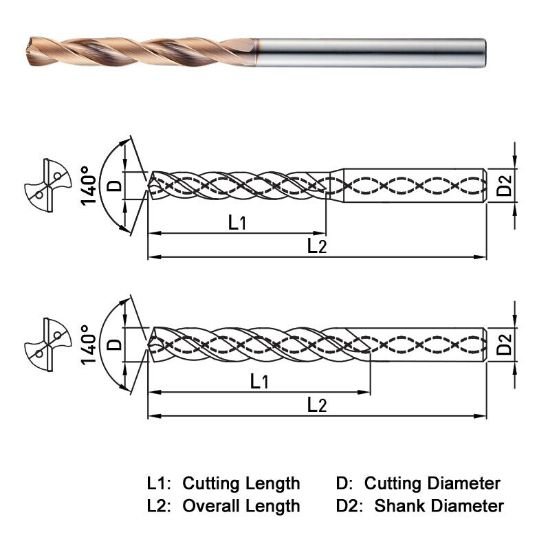

Picture of Widin SF50509921 9.921 - 25/64 Dia 140° Point 2 Flute 5XD Drill Carbide Thru Coolant

Widin SF50509921 9.921 - 25/64 Dia 140° Point 2 Flute 5XD Drill Carbide Thru Coolant

Part Number: WIDSF50509921
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$125.99
SKU: 1143637

Description

WIDIN SF50509921 Carbide Drill 9.921 - 25/64 DIA 140° Point 2 Flute 5XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.2520 108.00MM
Flute Length 2.4410 62.00MM
Dia Deep 5.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.3937 10.00MM
Tool Dia 0.3906 9.92MM - 25/64
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.3906 9.92MM - 25/64
Cut Rating >50HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
