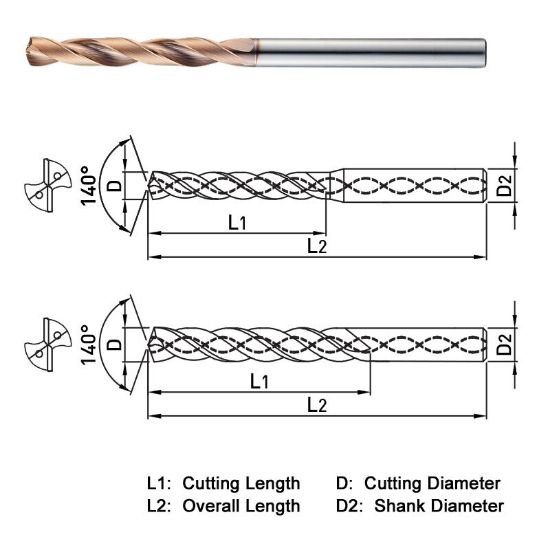

Picture of Widin SF505099 9.90mm Dia 140° Point 2 Flute 5XD Drill Carbide Thru Coolant

Widin SF505099 9.90mm Dia 140° Point 2 Flute 5XD Drill Carbide Thru Coolant

Part Number: WIDSF505099
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$125.99
SKU: 1143636

Description

WIDIN SF505099 Carbide Drill 9.90MM DIA 140° Point 2 Flute 5XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.2520 108.00MM
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 2
Tool Dia 0.3898 9.90MM
Flute Length 2.4410 62.00MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, >50HRC Steel
Cut Dia Min 0.3898 9.90MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN + HH
