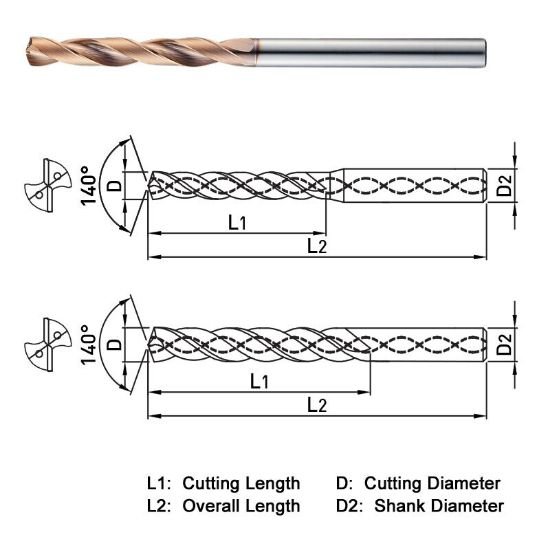

Widin SF50509652 .380 Dia 140° Point Flute 5XD Drill

Part Number: WIDSF50509652

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1143633
$383.13
WIDIN SF50509652 Carbide Drill .380 DIA 140° POINT FLUTE 5XD DRILL Coolant Thru TiAlN + HH Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, >50HRC Steel
Coating TiAlN + HH
Mach Side Connection Size 0.3937 10.00MM
Overall Length 4.7500 120.65MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3937 10.00MM
Tool Dia 0.3800 9.65MM
Type Of Tool Drill
Included Angle 140°
Flute Length 2.0000 50.80MM
Cut Dia Min 0.3800 9.65MM
Dia Deep 5.0x Dia
