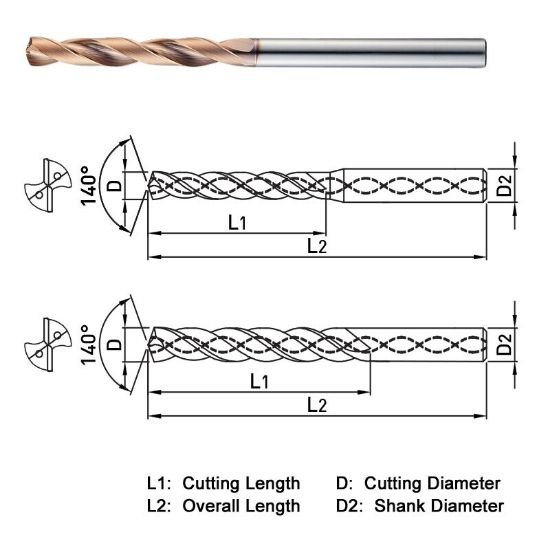

Picture of Widin SF50507938 7.938 - 5/16 Dia 140° Point 2 Flute 5XD Drill Carbide Thru Coolant

Widin SF50507938 7.938 - 5/16 Dia 140° Point 2 Flute 5XD Drill Carbide Thru Coolant

Part Number: WIDSF50507938
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$93.09
SKU: 1143611

Description

WIDIN SF50507938 Carbide Drill 7.938 - 5/16 DIA 140° Point 2 Flute 5XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.0551 103.00MM
Flute Length 2.0470 51.99MM
Dia Deep 5.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.3150 8.00MM
Tool Dia 0.3125 7.94MM - 5/16
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.3125 7.94MM - 5/16
Cut Rating >50HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
