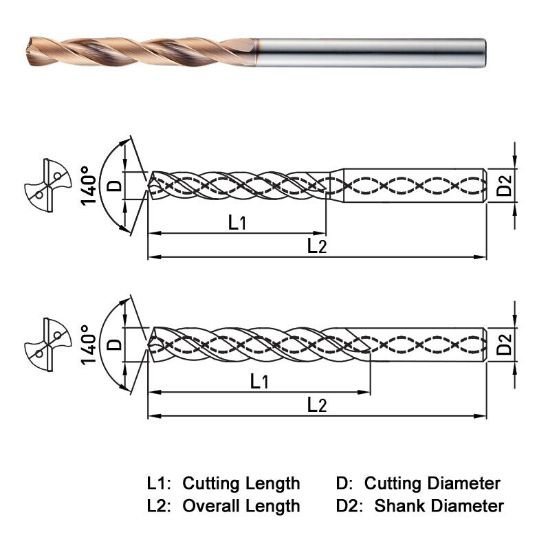

Picture of Widin SF5050397 5/32" Dia 140° Point 2 Flute 8XD Drill

Widin SF5050397 5/32" Dia 140° Point 2 Flute 8XD Drill

Part Number: WIDSF5050397

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1144471
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIN SF5050397 Carbide Drill 5/32" DIA 140° POINT 2 FLUTE 8XD DRILL Coolant Thru AlTiN Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, >50HRC Steel
Coating ALTIN
Coolant Thru Thru Coolant
Flutes/Inserts 2
Tool Dia 0.1563 3.97MM - 5/32
Type Of Tool Drill
Included Angle 140°
Cut Dia Min 0.1563 3.97MM - 5/32
Dia Deep 8.0x Dia
