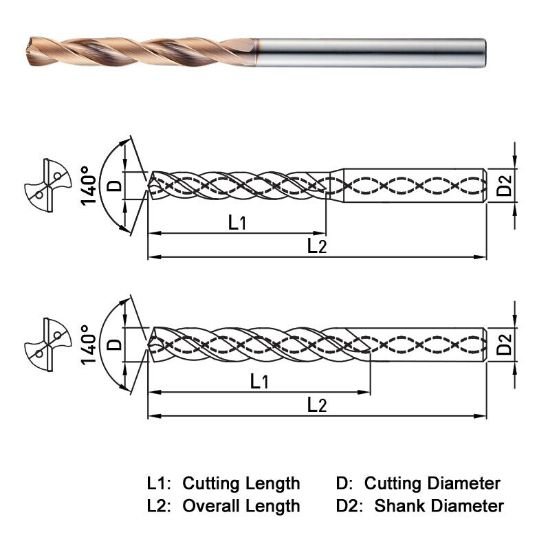

Picture of Widin SF50503572 3.572 - 9/64 Dia 140° Point 2 Flute 5XD Drill Carbide Thru Coolant

Widin SF50503572 3.572 - 9/64 Dia 140° Point 2 Flute 5XD Drill Carbide Thru Coolant

Part Number: WIDSF50503572
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$56.43
SKU: 1143557

Description

WIDIN SF50503572 Carbide Drill 3.572 - 9/64 DIA 140° Point 2 Flute 5XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 2.9134 74.00MM
Flute Length 1.1810 30.00MM
Dia Deep 5.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.1574 4.00MM
Tool Dia 0.1406 3.57MM - 9/64 - #28
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.1406 3.57MM - 9/64 - #28
Cut Rating >50HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
