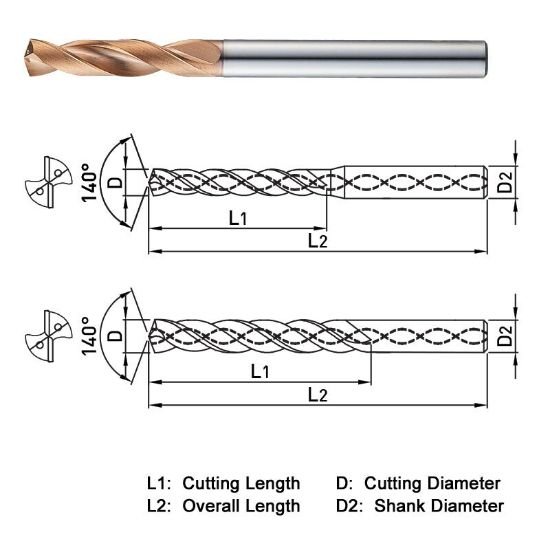

Picture of Widin SF503107 10.70mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Widin SF503107 10.70mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Part Number: WIDSF503107
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$119.14
SKU: 1143468

Description

WIDIN SF503107 Carbide Drill 10.70MM DIA 140° Point 2 Flute 3XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 3.7400 95.00MM
Shank/Pilot Dia 0.4331 11.00MM
Flutes/Inserts 2
Tool Dia 0.4213 10.70MM
Flute Length 2.0080 51.00MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, >50HRC Steel
Cut Dia Min 0.4213 10.70MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN + HH
