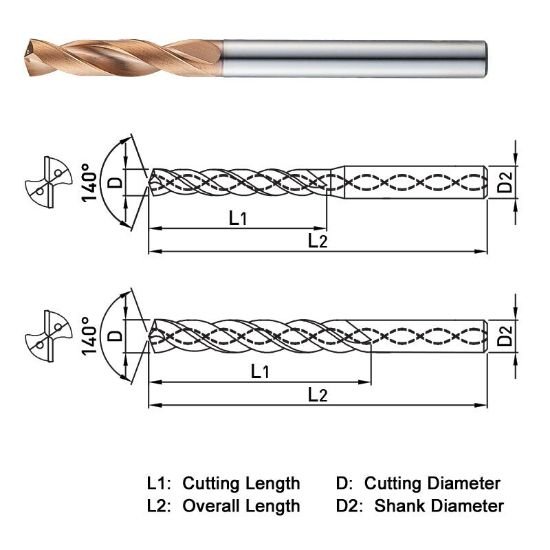

Picture of Widin SF5031032 10.32mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Widin SF5031032 10.32mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Part Number: WIDSF5031032
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$119.14
SKU: 1143464

Description

WIDIN SF5031032 Carbide Drill 10.32MM DIA 140° Point 2 Flute 3XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 3.7400 95.00MM
Flute Length 2.0080 51.00MM
Dia Deep 3.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.4331 11.00MM
Tool Dia 0.4062 10.32MM - 13/32
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.4063 10.32MM - 13/32
Cut Rating >50HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
