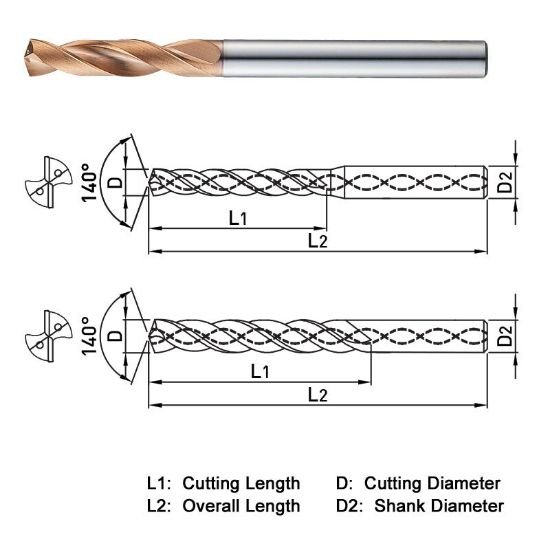

Picture of Widin SF503077 7.70mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Widin SF503077 7.70mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Part Number: WIDSF503077
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$70.53
SKU: 1143431

Description

WIDIN SF503077 Carbide Drill 7.70MM DIA 140° Point 2 Flute 3XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 3.1102 79.00MM
Flute Length 1.5750 40.01MM
Dia Deep 3.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.3150 8.00MM
Tool Dia 0.3031 7.70MM
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.3031 7.70MM
Cut Rating >50HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
