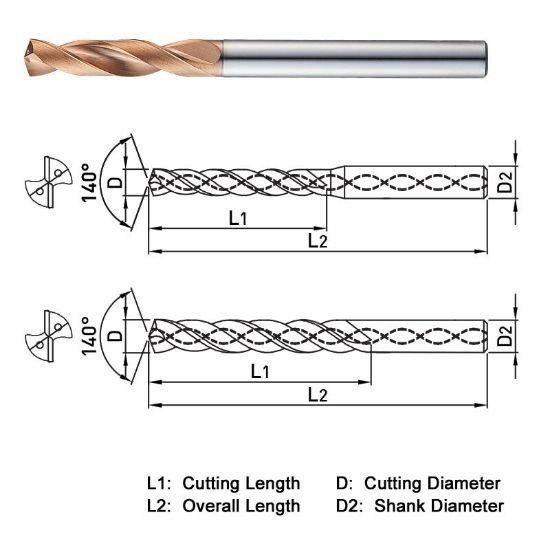

Picture of Widin SF50307145 7.145mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Widin SF50307145 7.145mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Part Number: WIDSF50307145
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$70.53
SKU: 1143423

Description

WIDIN SF50307145 Carbide Drill 7.145MM DIA 140° Point 2 Flute 3XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 3.1102 79.00MM
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 2
Tool Dia 0.2812 7.14MM - 9/32
Flute Length 1.5750 40.01MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, >50HRC Steel
Cut Dia Min 0.2810 7.14MM - 9/32 - K
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN + HH
