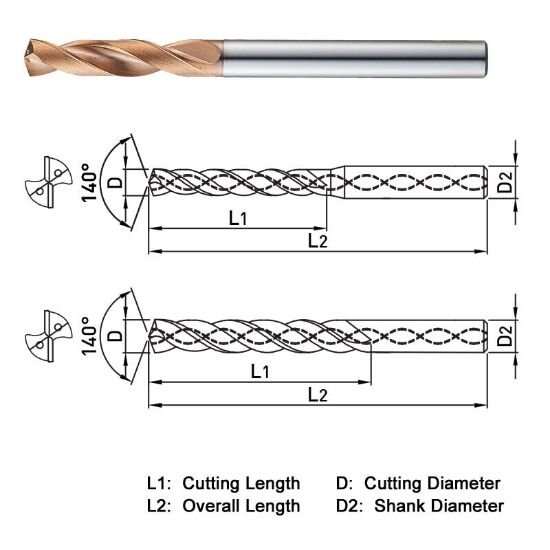

Picture of Widin SF5030635 6.35mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Widin SF5030635 6.35mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Part Number: WIDSF5030635
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$60.66
SKU: 1143413

Description

WIDIN SF5030635 Carbide Drill 6.35MM DIA 140° Point 2 Flute 3XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 2.9134 74.00MM
Flute Length 1.3390 34.01MM
Dia Deep 3.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.2756 7.00MM
Tool Dia 0.2500 6.35MM - 1/4 - E
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.2500 6.35MM - 1/4 - E
Cut Rating >50HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
