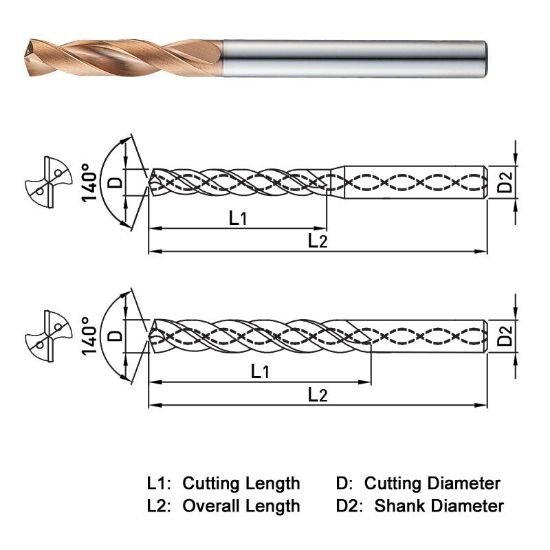

Picture of Widin SF503038 3.80mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Widin SF503038 3.80mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Part Number: WIDSF503038
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$50.80
SKU: 1143382

Description

WIDIN SF503038 Carbide Drill 3.80MM DIA 140° Point 2 Flute 3XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 2.3622 60.00MM
Shank/Pilot Dia 0.1574 4.00MM
Flutes/Inserts 2
Tool Dia 0.1495 3.80MM - #25
Flute Length 0.9450 24.00MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, >50HRC Steel
Cut Dia Min 0.1496 3.80MM - #25
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN + HH
